Case Study: Whitefox ICE at Pacific Ethanol, Madera, California

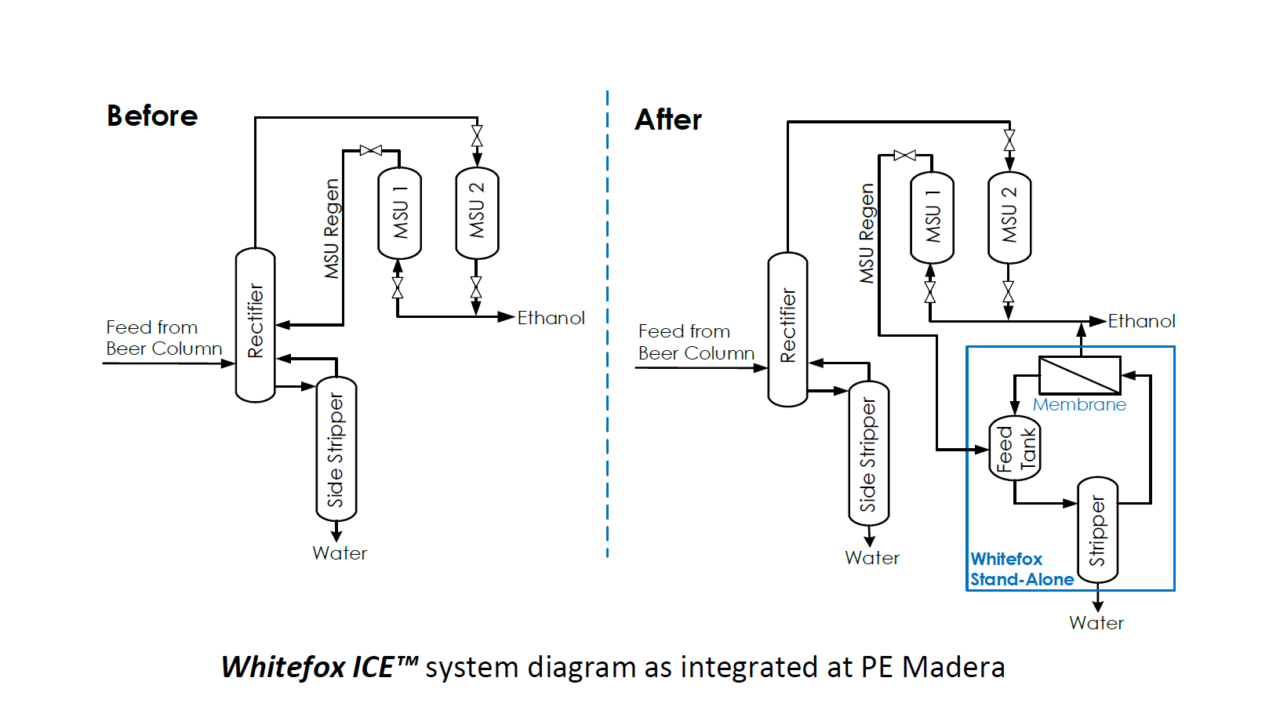

Pacific Ethanol Madera is a 40 mmgy Delta-T design. The Whitefox ICE system directly dehydrates the molecular sieve regenerate stream (MSU regen) to US fuel grade ethanol, rather than sending it back to the rectifier column, as shown in Fig. 2. The Whitefox ICETM system dehydrates from 60-75 vol% to >99.0 vol% in a single continuous pass with no regeneration of the membranes.

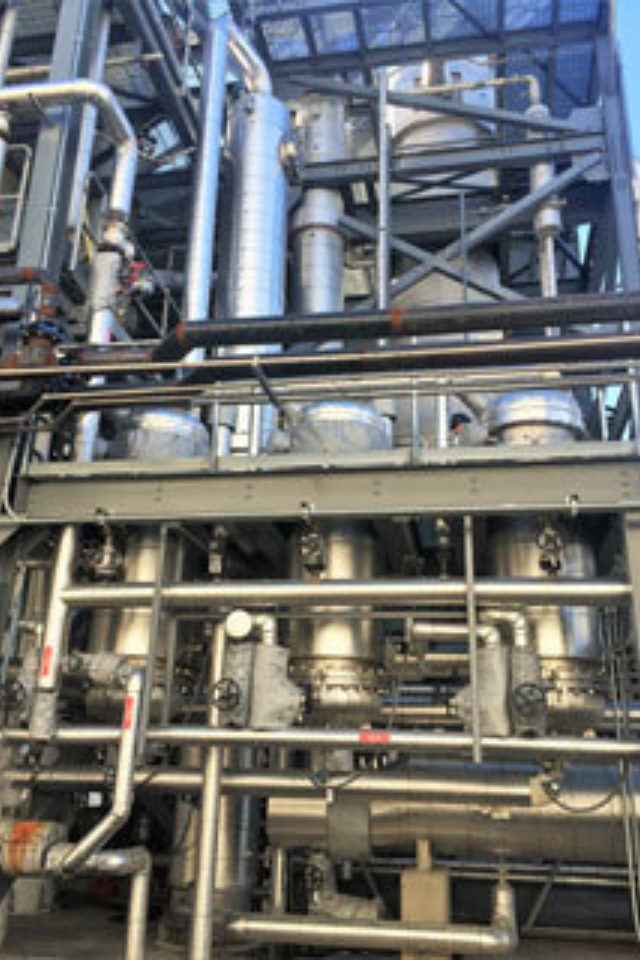

Pacific Ethanol

Madera, California

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

Benefits

  • Capacity increase: 15%
  • Reduction in Natural Gas: 800 – 1,000 BTU/gal (223 – 279 kJ/Litre)
  • Reduction in Cooling Water: 800 – 1,000 BTU/gal (223 – 279 kJ/Litre)
  • Reduction in Carbon Intensity score: 1 CI point
  • Fluctuations removed in rectifier column
  • Distillation & dehydration debottlenecked
  • Overall improvements in plant operation & efficiency

Specification

Location: Madera, CA

Plant design: Delta - T

Feedstock: Corn

Application: Biofuels (U.S. Fuel Grade)

Nameplate Capacity: 40MMGPY (151 MMLPY)

Whitefox ICE® Design Capacity: 18,000 std GPD (68,100 std LPD)

Project Status: Started-up in Q4 2016
